Hydraulic Sheet Metal Steel Ironworker shear machine punching machine Hydraulic Iron worker

FOB Reference Price:Get Latest Price
$7,500.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AIW-60
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
IRONWORKER
Dimension(L*W*H):
1650*800*1780mm
Warranty:
12 Months
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Voltage:
380V/220V Optional
Power(W):
4KW
Weight:
1800kgs
Certification:
CE ISO
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Film Protective Package
Port
SHANGHAI/NINBGO
Video Description
Product Description

Product Application

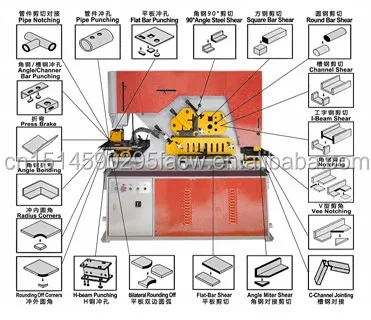

APEC Brand AIW series Ironworker features multiple functions, including: punching all kinds of holes (round hole, square hole, oblong hole), louver punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, flat bar shearing, T-bar shearing, steel plate shearing, angle steel shearing), notching, press brake, angle steel notching , bending, pipe notching. It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.We can design any special tools according to your metal fabricating requirements.

SPECIFICATION FOR 60TON HYDRAULIC IRONWORKER
No.
Item
Unit
Value
1
Hole Punching
Punching Pressure
KN
600
Max. Punching Thickness
mm
16
Max. diameter of Punching
mm
25
Depth of Throat
mm
300
Max. Length of Cylinder Stroke
mm
80
Stroke Times
times/min
8-22
2
Flat Bar Shearing
Angle of Shear
degree
Max. Shearing Thickness
mm
16
Flat Bar(W*T)
mm
400x8
250x16
3
Angle Steel Shearing
90° Shearing of Equal Angle Steel
mm
120x120x10
45° Shearing of Equal Angle Steel
mm
70x70x8
4

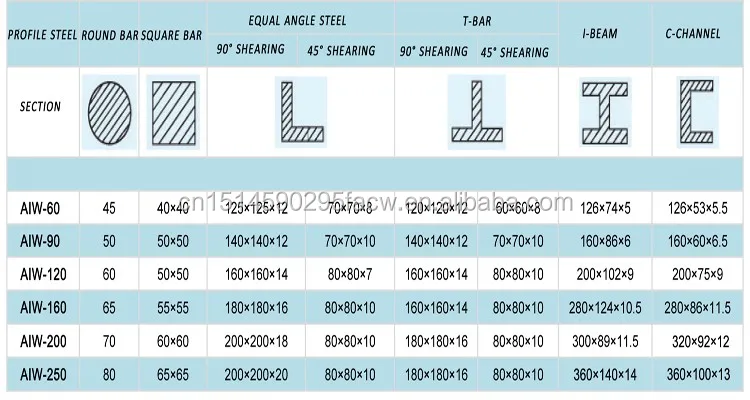

Profile Stell Shearing
Round Bar
mm
45
Square Bar
mm
40x40
T-Bar
mm
120x60x12
I-Beam
mm
126x74x5
C-channel
mm
126x53x5.5
5
Notching
Thickness
mm
10
Width
mm
57
Depth
mm
100
6
Material Tensile Strength
N/mm2
450
7
Motor Power
KW
4
8
Overall Dimensions(LxWxH)
mm
1650x800x1780
9
Gross Weight
kgs
1800
Note: Design and specifications subject to change without notice.

Main Features

1. High Quality Components & System
a. Main Electrical component: Schneider
b. Valve: Yuken
c. Pump: Hydromax
d. Oil Seals: DZ
e. Timer Relay: OMRON
f. Motor: Siemens
2. Cost Effective
AIW SERIES Hydraulic Ironworker With Very good price/performance ratio
Various AIW SERIES Hydraulic Ironworker capacity from 45T to 400T to meet your requirement.
3. Stable Performance & Reliable Quality
AIW Series Hydraulic Ironworker use hydraulic transmission. Light weight, low noise, reliable performance.
4. Simple Operation
The operation of hydraulic ironworker is controlled by foot switch.

Similar Machine
Detailed Images

Punching Station

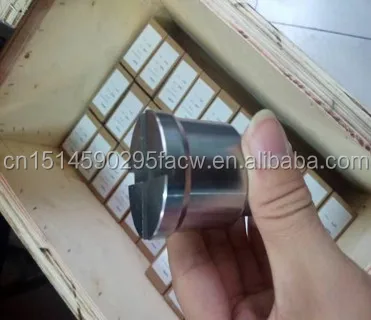

Full range of universal punches and dies are available.
Quick change coupling nut and sleeve for rapid replacement of change.
2 pcs of gauging table with rulers.
Swing away design for stripper.


Shearing Station

Realize 45° or 90° shearing for angle steel.
Round and Square bar shearing avaible for multiple holes with a variety of sizes.
Optional manual holding or auto holding tight system.



Notching Station

3 gauging stops for precise positioning
This station is for cutting or slotting @ flat bar /angle steel/pipes.

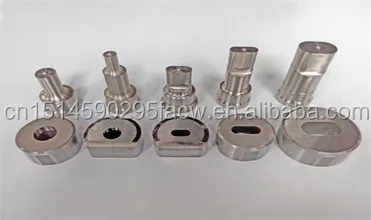

Multiple Punches

Multiple punches meet variety demand of clients.


Our Service

Engineers can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

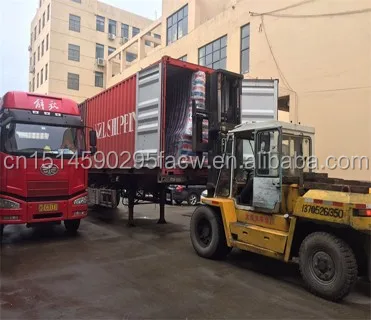

Packing & Delivery
Packaging
Size
1650mm (L) * 800mm (W) * 1780mm (D)
Weight
1.8T


Packaging Details
The normal package is film protective package.
If Wooden case is required, pls. inform in advance.

Packaging



Packaging Details
The normal package is in carton and wooden box for large quantities.
Work Pieces
