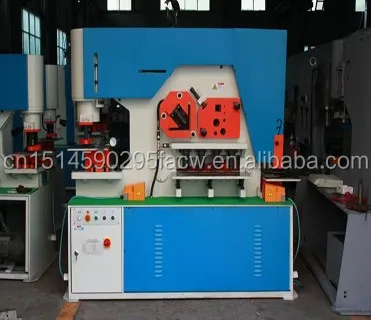

APEC AIW-120 Hydraulic Ironworker, Round Corner Machine and Steel Bar Cutting Machine

FOB Reference Price:Get Latest Price
$11,600.00 - $12,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Power Source:
HYDRAULIC
Place of Origin:
Jiangsu, China
Brand Name:
IRONWORKER
Voltage:
380V/220V Optional
Dimension(L*W*H):
2350*1000*2150mm
Certification:
CE ISO
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Model Number:
AIW-120
Power(W):
7.5KW
Weight:
4800KGS
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
FILM PROTECTIVE PACKAGE OR WOODEN CASE
Port
SHANGHAI/NINGBO
Video Description
Product Description

Product Application

APEC Brand AIW series Ironworker features multiple functions, including: punching all kinds of holes (round hole, square hole, oblong hole), louver punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, flat bar shearing, T-bar shearing, steel plate shearing, angle steel shearing), notching, press brake, angle steel notching , bending, pipe notching. It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.We can design any special tools according to your metal fabricating requirements.

SPECIFICATIONS FOR 120 TON HYDRAULIC IRONWORKER
ITEM
IMPERIAL
METRIC
Hole Punching
Punching Pressure
135Ton
1200KN
Max. Punching Thickness
.98"
25mm
Max. Diameter of Punching
1.37"
35mm
Depth of Throat
15.74"
400mm
Max. Length of Cylinder Stroke
3.14"
80mm
Stroke Times(times/min)
8-22
8-22
Flat-bar Shearing
Angle of Shear
Max. Shearing Thickness
.98"
25mm
Flat Bar(WxT)
23.62"x.63"
600x16mm
13"x.98"
330x25mm
Angle Steel Shearing
90° Shearing of Equal Angle Steel
6.30"x6.30"x.55"
160x160x14mm
45° Shearing of Equal Angle Steel
3.15"x3.15"x.28"
70x70x10mm
Profile Steel Shearing
Round bar
2.36"
60mm
Square bar
1.96"x1.96"
50x50mm
I-beam
7.87"x4.02"x.35"
200x102x9mm
C-channel
7.27"x2.95"x.35"
200x75x9mm
Notching
Thickness
.55"
13.4mm
Width
2.24"
57mm
Depth
3.93"
100mm
Material Tensile Strength
65,267PSI
450N/mm2
Motor Power
10HP
7.5KW
Overall Dimension(LxWxH)
92.5"x39"x83"
2350X980X2100mm
G.W
10,582lbs
4800kg

Main Features

1. High Quality Components & System
a. Main Electrical component: Schneider
b. Valve: Yuken
c. Pump: JingGong
d. Oil Seals: NOK
e. Timer Relay: OMRON
f. Motor: Siemens
2. Cost Effective
AIW SERIES Hydraulic Ironworker With Very good price/performance ratio
Various AIW SERIES Hydraulic Ironworker capacity from 45T to 400T to meet your requirement.
3. Stable Performance & Reliable Quality
AIW Series Hydraulic Ironworker use hydraulic transmission. Light weight, low noise, reliable performance.
4. Simple Operation
The operation of hydraulic ironworker is controlled by foot switch.

Accessories

a. A pair of round hole punching die
b. A set of angle steel blade
c. A set of square and round bar blade
d. A set of shearing plate blade
e. A set of notching blade
The above punching and moulds will be installed in the machine.
For other dies and blades, customers need to order
Installation & Operation Training
APEC will provide you 1-7 day installation and operating training in our factory.

Detailed Images

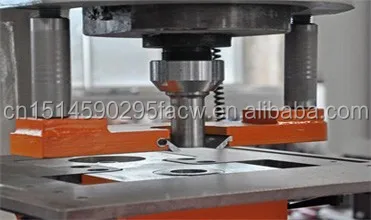

Punching Station

Full range of universal punches and dies are available.
Quick change coupling nut and sleeve for rapid replacement of change.
2 pcs of gauging table with rulers.
Swing away design for stripper.

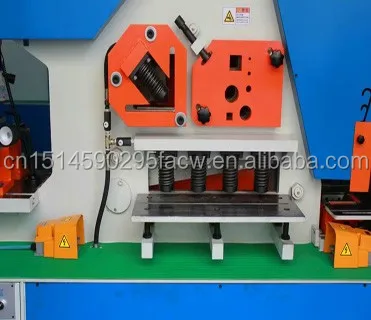

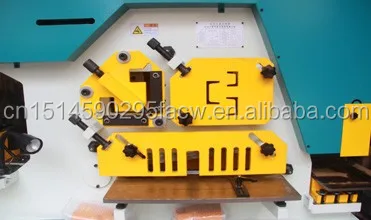

Shearing Station

Realize 45° or 90° shearing for angle steel.
Round and Square bar shearing avaible for multiple holes with a variety of sizes.
Optional manual holding or auto holding tight system.

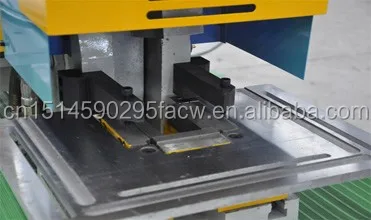

Notching Station

3 gauging stops for precise positioning
This station is for cutting or slotting @ flat bar /angle steel/pipes.

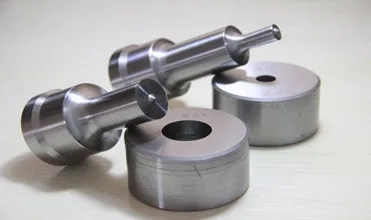

Punch Die

Multiple punches meet variety demand of clients.

Relative Accessory
Our Service

Engineers can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

Packing & Delivery
Packaging
Size
2350 (L) * 980 (W) * 2100 (D)mm
Weight
4T



Packaging Details
The normal package is film protective package.
If Wooden case is required, pls. inform in advance.
Packaging



Packaging Details
The normal package is in carton and wooden box for large quantities.
Work-pieces
FAQ-MOLD

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2 days if the goods are in stock. or it is 3-5 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
