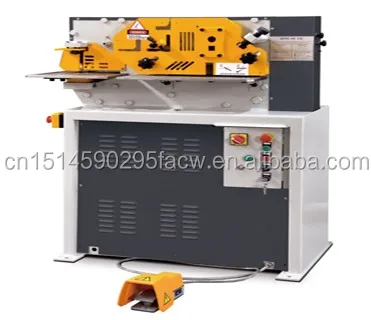

APEC ASW-45 Hydraulic Steelworker Euro Quality

FOB Reference Price:Get Latest Price
$9,000.00 - $9,800.00 / Sets | 1 Set/Sets (Min. Order)
Nominal Force (kN):
500
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New, New
Power Source:
Hydraulic, Hydraulic
Place of Origin:
Jiangsu, China
Brand Name:
IRONWORKER
Dimension(L*W*H):
1520x590x1700mm
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Machine Type:
Punching Machine
Weight (T):
1.2
Key Selling Points:
High Productivity
CNC or Not:
Normal
Voltage:
380V/220V Optional
Weight:
1250kgs
Certification:
CE ISO
Product name:
APEC Steel Ironworker Machine for Channel Punching
Power(W):
4KW
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
FILM PROTECTIVE PACKAGE OR WOODEN CASE
Port
SHANGHAI/NINGBO
Product Description

Product Application

APEC Brand ASW series Ironworker features multiple functions, including: punching all kinds of holes (round hole, square hole, oblong hole), louver punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, flat bar shearing, T-bar shearing, steel plate shearing, angle steel shearing), notching, press brake, angle steel notching , bending, pipe notching. It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.We can design any special tools according to your metal fabricating requirements.

SPECIFICATIONS FOR 65TON HYDRAULIC IRONWORKER
ITEM
UNIT
VALUE
Punching
Max. Capacity
mm
28x15
Dia.x Thi.
mm
38x11
Stroke Length
mm
55
Standard Throat Depth
mm
26
Deep Throat Model
mm
220
Deep throat model
mm
-
Largest Hole(Optional)
mm
110
Max. Height
mm
940
Shearing
Flat bar- Max. Thickness
mm
200x20
Flat bar- Max. Width
mm
300x15
Angle Flange Trim-Max. 45°
mm
80x10
Working Height
mm
940
Angle Shearing
90° Shearing
mm
127x12
45° Mitre (true int./ext.)
mm
80x8
Working Height
mm
1140
Profile Shearing
Round/Square
mm
40/35
Channel/Beam
mm
102x51
Tee
mm
76x10
Notching
Material Thickness
mm
10
Width - Rectangle
mm
42
Depth - Rectangle
mm
100
Depth- Vee
mm
60
Angle Flange - Max. profile
mm
100x10
Working Height
mm
940
Cornor Notching
Maximum Capacity
mm
150x4
Tube Notch
Maximum outside dia.
mm
60
Bending
Plate
mm
Max. Capacity
mm
150x12
Punching at notch Station
Throat Depth
mm
110
Maximum Cpacity
mm
20x12
Technical Data
Motor Power
KW
4
Net Weight- st. Throat
KG
1250
LxWxH
mm
152x59x170

Main Features

1. High Quality Components & System
a. Main Electrical component: Schneider
b. Valve: Yuken
c. Pump: JingGong
d. Oil Seals: NOK
e. Timer Relay: OMRON
f. Motor: Siemens
2. Cost Effective
ASW SERIES Hydraulic Ironworker With Very good price/performance ratio
Various ASW SERIES Hydraulic Ironworker capacity from 40T to 175T to meet your requirement.
3. Stable Performance & Reliable Quality
ASW Series Hydraulic Ironworker use hydraulic transmission. Light weight, low noise, reliable performance.
4. Simple Operation
The operation of hydraulic ironworker is controlled by foot switch.

Accessories

a. A pair of round hole punching die
b. A set of angle steel blade
c. A set of square and round bar blade
d. A set of shearing plate blade
e. A set of notching blade
The above punching and moulds will be installed in the machine.
For other dies and blades, customers need to order
Installation & Operation Training
APEC will provide you 1-7 day installation and operating training in our factory.

Detailed Images

Punching Station

Full range of universal punches and dies are available.
Quick change coupling nut and sleeve for rapid replacement of change.
2 pcs of gauging table with rulers.
Swing away design for stripper.

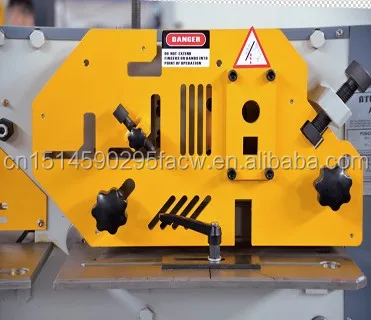

Shearing Station

Realize 45° or 90° shearing for angle steel.
Round and Square bar shearing avaible for multiple holes with a variety of sizes.
Optional manual holding or auto holding tight system.

Notching Station

3 gauging stops for precise positioning
This station is for cutting or slotting @ flat bar /angle steel/pipes.


in Stock

Plenty of Steelworker in Stock ready for dispatch

Relative Accessory
Our Service

Engineers can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

Packing & Delivery
Packaging
Size
2350 (L) * 980 (W) * 2100 (D)mm
Weight
4T



Packaging Details
The normal package is film protective package.
If Wooden case is required, pls. inform in advance.
Packaging



Packaging Details
The normal package is in carton and wooden box for large quantities.
Work-pieces
FAQ-MOLD

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2 days if the goods are in stock. or it is 3-5 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
